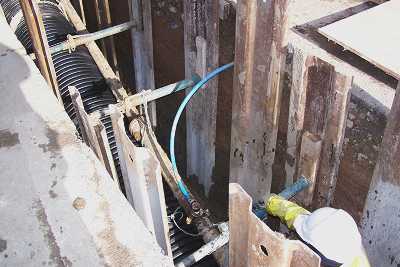

A further full length of 600ml twin-wall is threaded (with
some difficulty) through the props and under the cast-iron water main into
position. 28/2/06 |

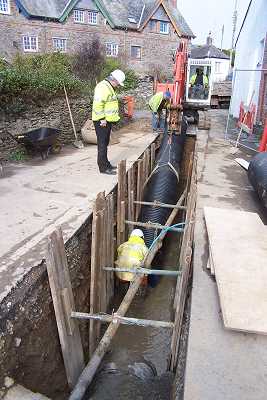

| Another view of where the work has reached. The small blue
pipe is the new water connection to 5 St Andrews Cottages. Note the
continuing need to support the crumbling side walls of the trench. The
water in the bottom of the trench is coming from... 28/2/06 |
|
|

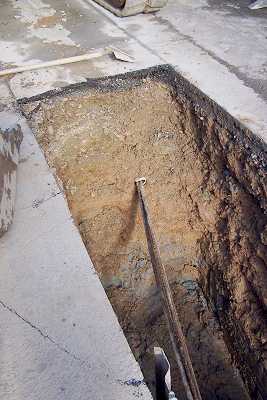

...just above the dark (clay) layer in this picture.
Ground water soaks down through the upper gravelly/sandier layers until it
reaches the impermeable clay. The cast-iron water main has now disappeared
safely off into the right-hand side wall of the trench, only to be
replaced by BT cables, suspended in mid-air. 28/2/06 |

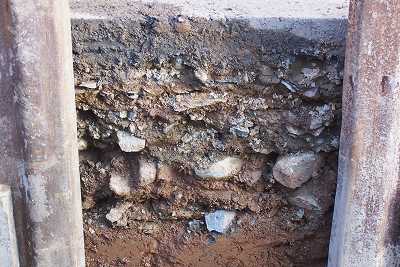

| An interesting picture showing a cross-section about 24"
deep with the modern tarmac road surface at the top. Further down, the
layer of large stones with a layer of finer stone above them were most
probably the road surface prior to the days of tarmac. So when Nos. 4 and
5 St Andrews Cottages just behind were built in about 1901 or 1902 -
before tarmac roads in Harberton - the crushed stone surfaced road was a
lot lower. 28/2/06 |
|
